CAD-IMAGES & ILLUSTRATIONS
In addition to the rendering posters, I also create high-resolution and illustrated CAD-images for selected projects. For large-format versions in full 4K resolution (print or electronic), please contact me.
Graupner

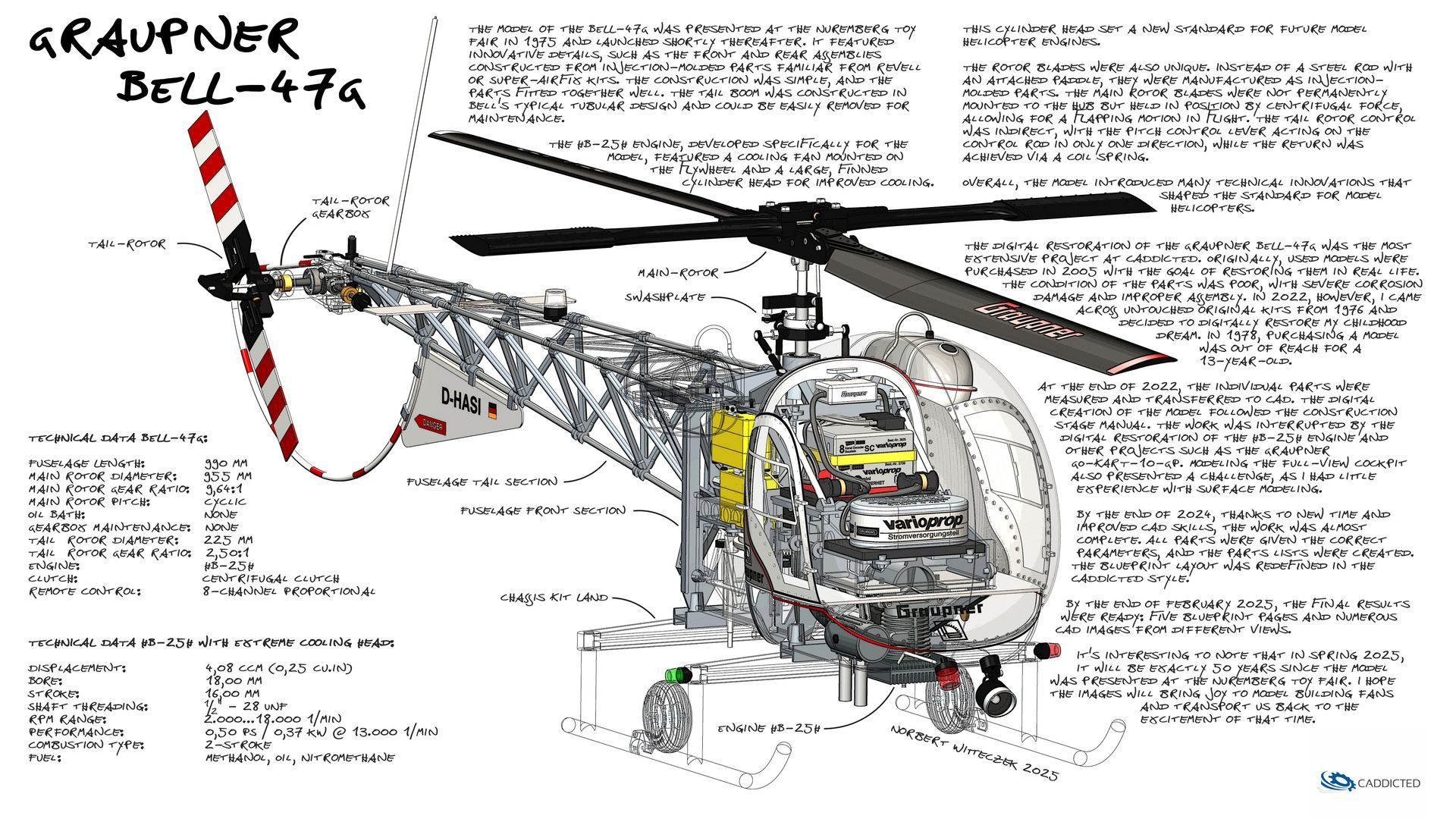

BELL-47G
The BELL-47G from 1975 is one of the first RC helicopters from Graupner in a scale of 1:9.71.
Graupner
GO-KART-10-GP
The GO-KART-10 from 1980 is a 1:4 scale replica of a manned on-road go-kart from the kart racing industry.
O.S. ENGINES

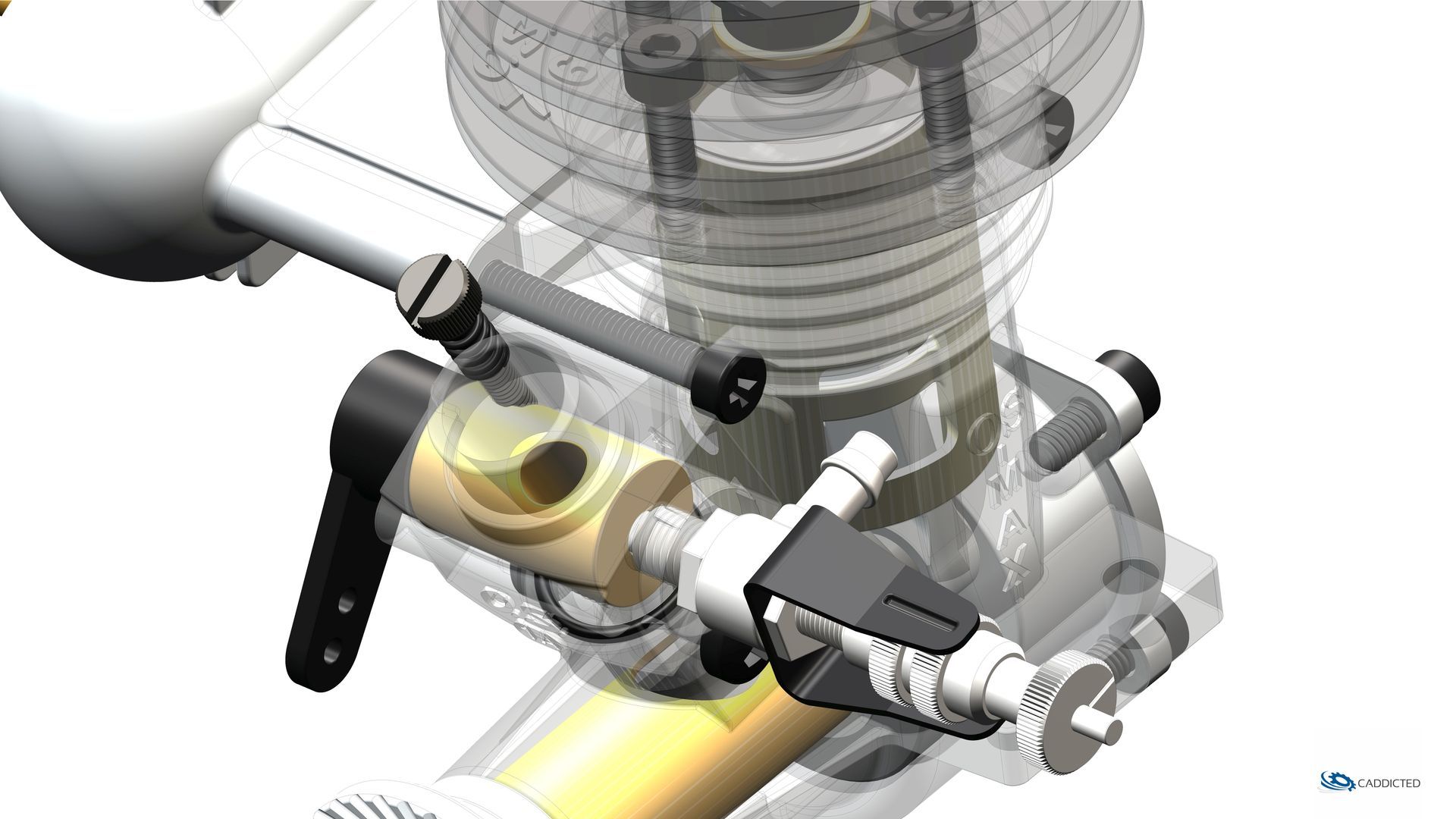

OS-MAX-10FSR-C
The 2-stroke combustion engine 1.76 cc for car models. Version with extreme cooling head.
O.S. ENGINES

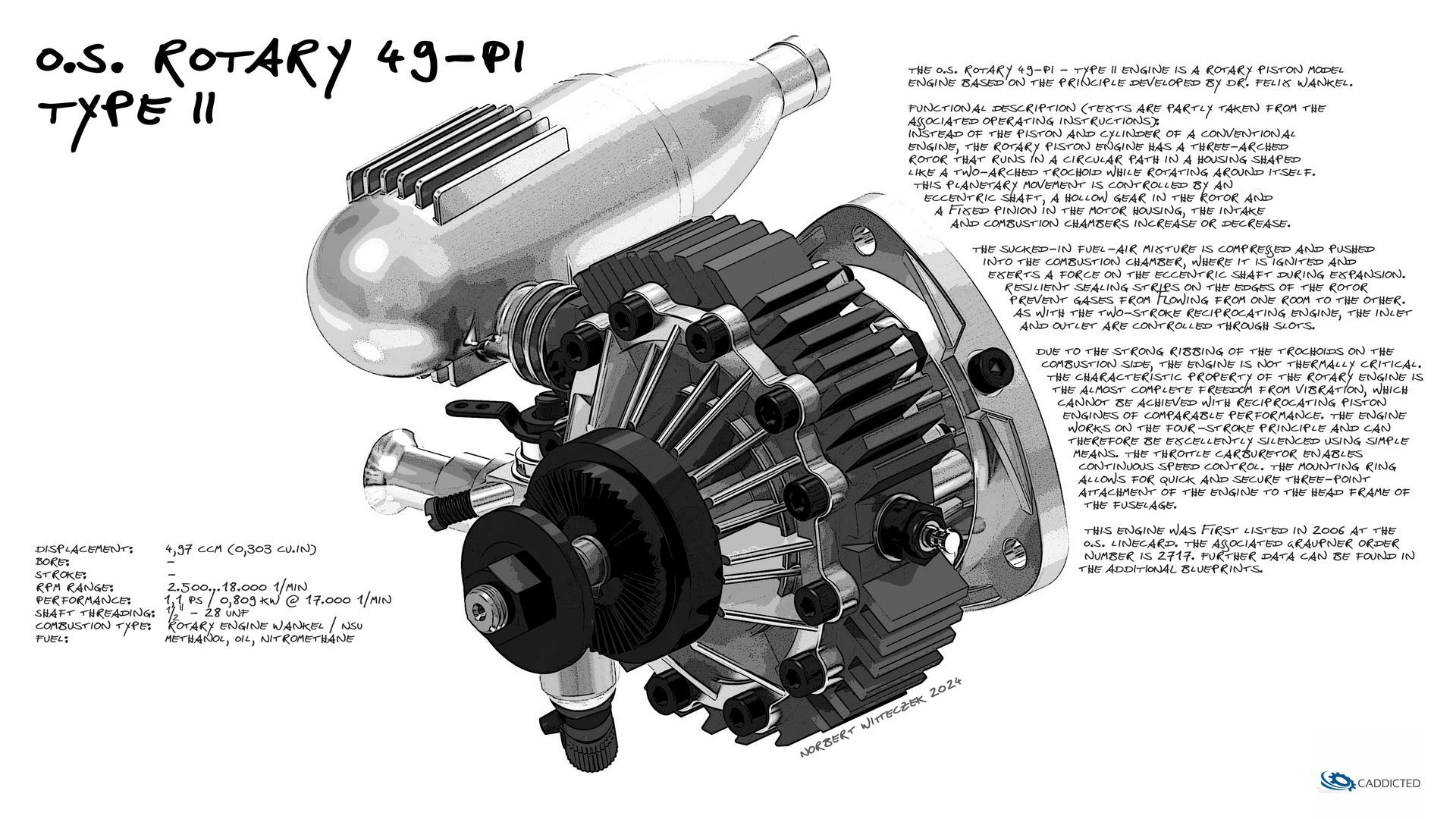

OS-RE-49-PI-II
The 2-stroke combustion engine 1.76 cc for car models. Version with extreme cooling head.
THE ENGINES

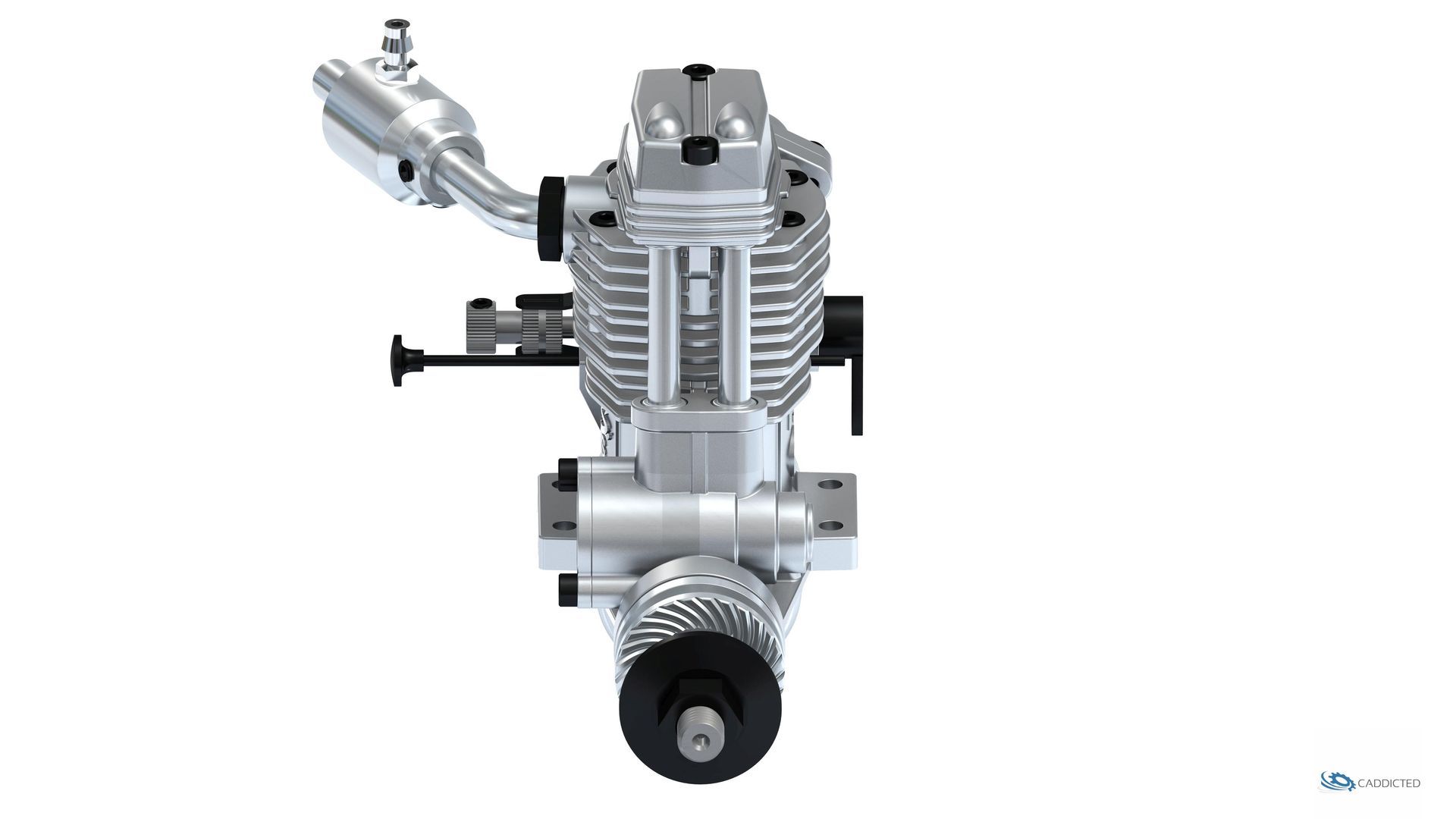

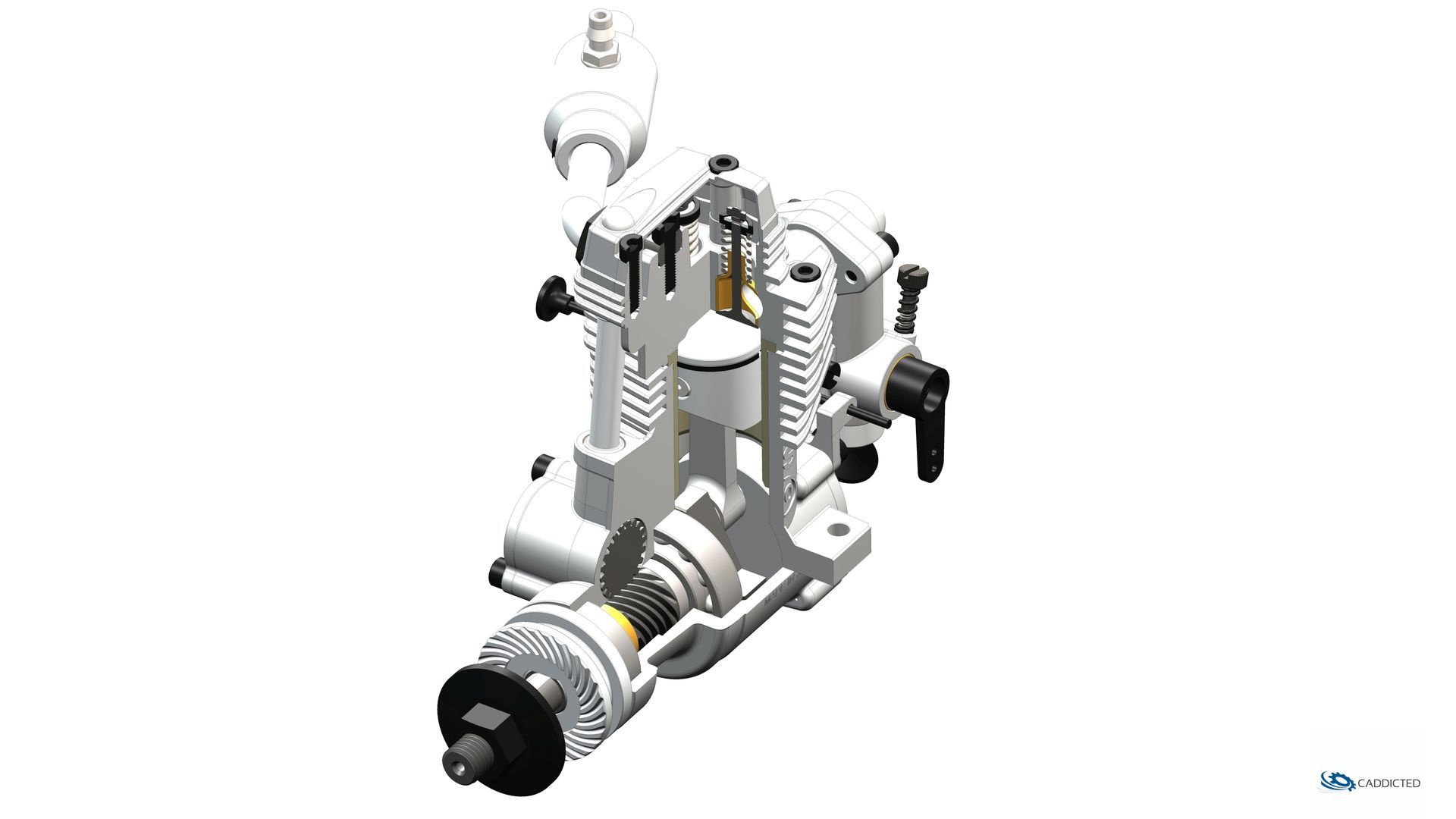

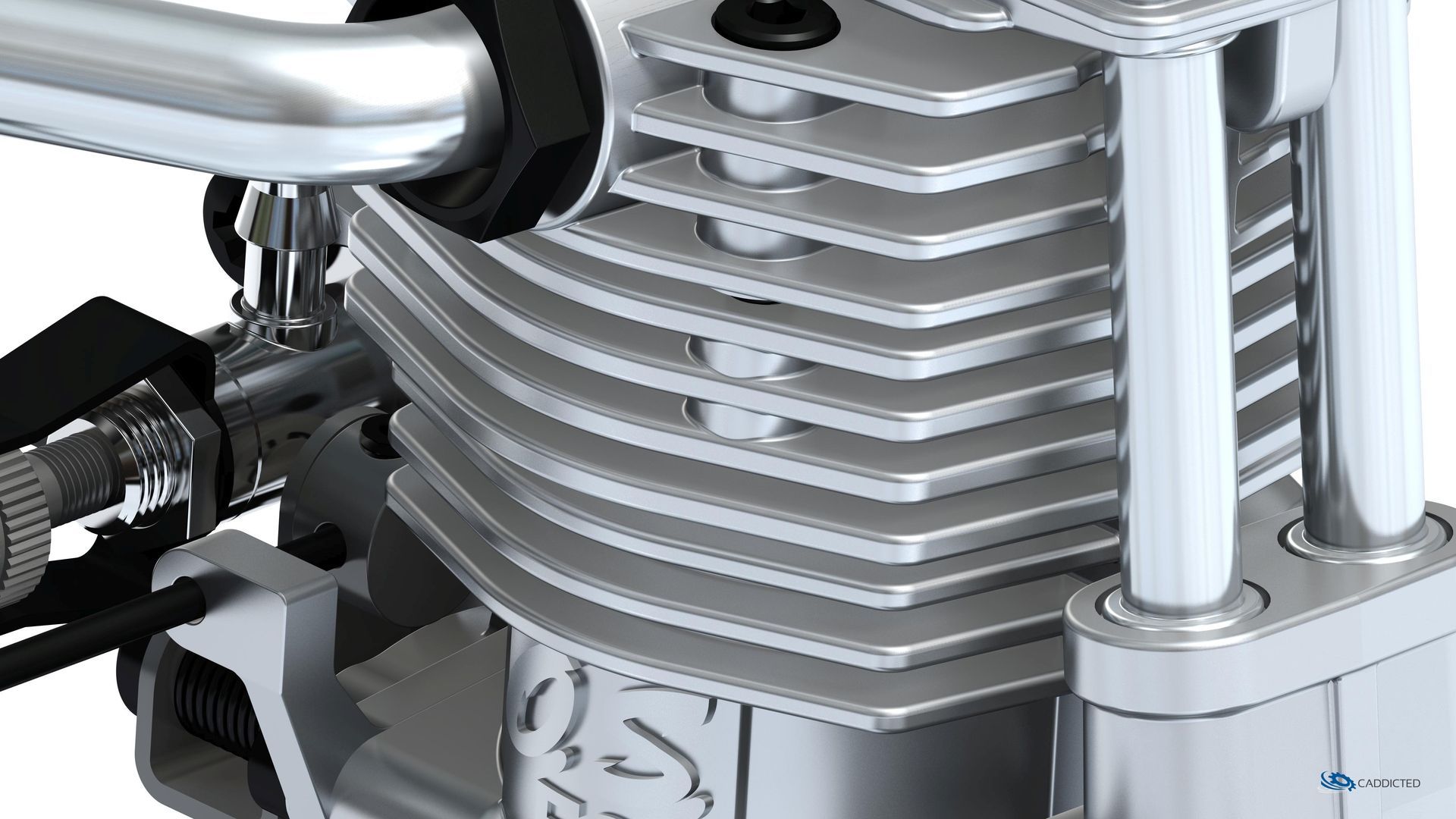

OS-FS-20
The OS ENGINES FS-20 was my first digital restoration of a 4-stroke engine for RC models.
The design of the FS-20 was robust and based on the FS-40, which was popular at that time.
